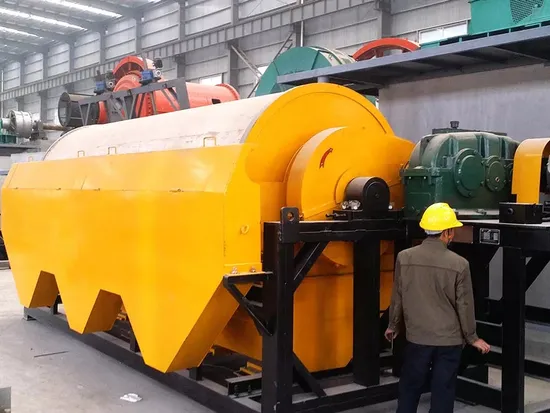

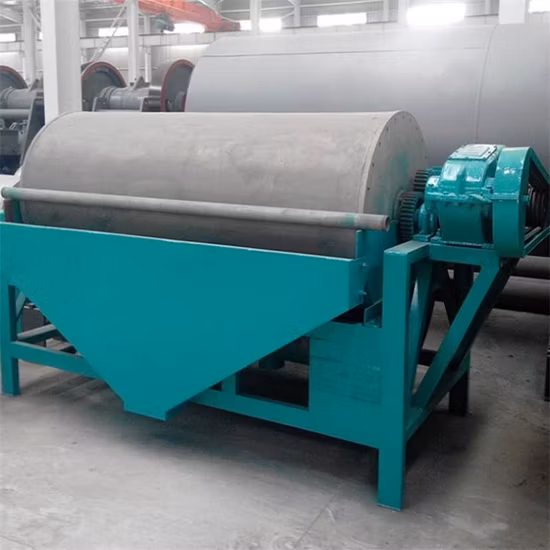

Silica Sand Wet and Dry Magnetic Drum Separator From China Manufacturer
silica sand wet and dry magnetic drum separator from china manufacturer Magnetic drum separator Usage and application :
Send your inquiryDESCRIPTION
Basic Info
Model NO. | CTD1500*3000 |
Type | Magnetic Separator |
Voltage | 380V |
Weight | 2T |
Material | Carbon Steel |
Material Feature | Heat Resistant |
Certification | ISO9001:2008, ISO9001:2000, CE |
Energy Saving | Energy Saving |
Warranty | 1 Year |
Color | Red |
Customized | Customized |
Condition | New |
After-sales Service | Long Life |
Working Type | Dry and Wet Process |
Magnetic Field Strength | 1400-4000 Gauss |
Installation | Engineer Guide |
Price | Can Be Negotiated |
Transport Package | Load in Container |
Specification | CTB series |
Trademark | hengxing |
Origin | China |
HS Code | 8474100000 |
Production Capacity | 100sets One Year |
Product Description
silica sand wet and dry magnetic drum separator from china manufacturer Magnetic drum separator Usage and application :The Low Intensity Wet Drum Magnetic Separator is mainly used for iron ore beneficiation , remove the iron tramp as the impurity form the industrial materials by wet processing
CTB wet semi-countercurrent magnetic separator is suitable for cleaning and cleaning of strong magnetic materials with particle size below 0.5mm for wet separation of ores, especially for the selection of minerals with particle size of 0.15~0mm. Or remove the strong magnetic minerals mixed from non-magnetic minerals.
Magnetic drum separator Working principle:
When the ore pulp flow into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Magnetic drum separator Features:
1. Advanced magnetic circuit design, deep magnetic effective depth and high recovery.
2. Simple and compact structure, strong magnetic force.
3. Easy to maintain, easy installation, reliable performance.
4. Stable and reliable driving device, no malfunction or breakdown for a long time.
Magnetic drum separator Technical specifications :
Model | Drum diameter(mm) | Drum length(mm) | Rotary speed(r/min) | Feed size(mm) | capacity(t/h) | power(kw) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
Dry Magnetic drum separator technical parameter
Model | CTG 7518 | CTG 9018 | CTG 1018 | CTG 1021 | CTG1024 | CTG 1230 | CTG 1530 |
Drum size (mm) | 750X1800 | 900X1800 | 1050X1800 | 1050X2100 | 1050X2400 | 1200X3000 | 1500X3000 |
Capacity (T/H) | 40 to 50 | 45 to 55 | 100 to 120 | 125 to 145 | 130 to 180 | 150 to 220 | 170 to 250 |
Feed size (mm) | 0 to 8 | 0 to 8 | 0 to 8 | 0 to 10 | 0 to 10 | 0 to 10 | 0 to 10 |
Motor (KW) | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 11 |
Water content | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% |
Rotation (r/m) | 34 | 30 | 24.5 | 24.5 | 24.5 | 21 | 18 |
